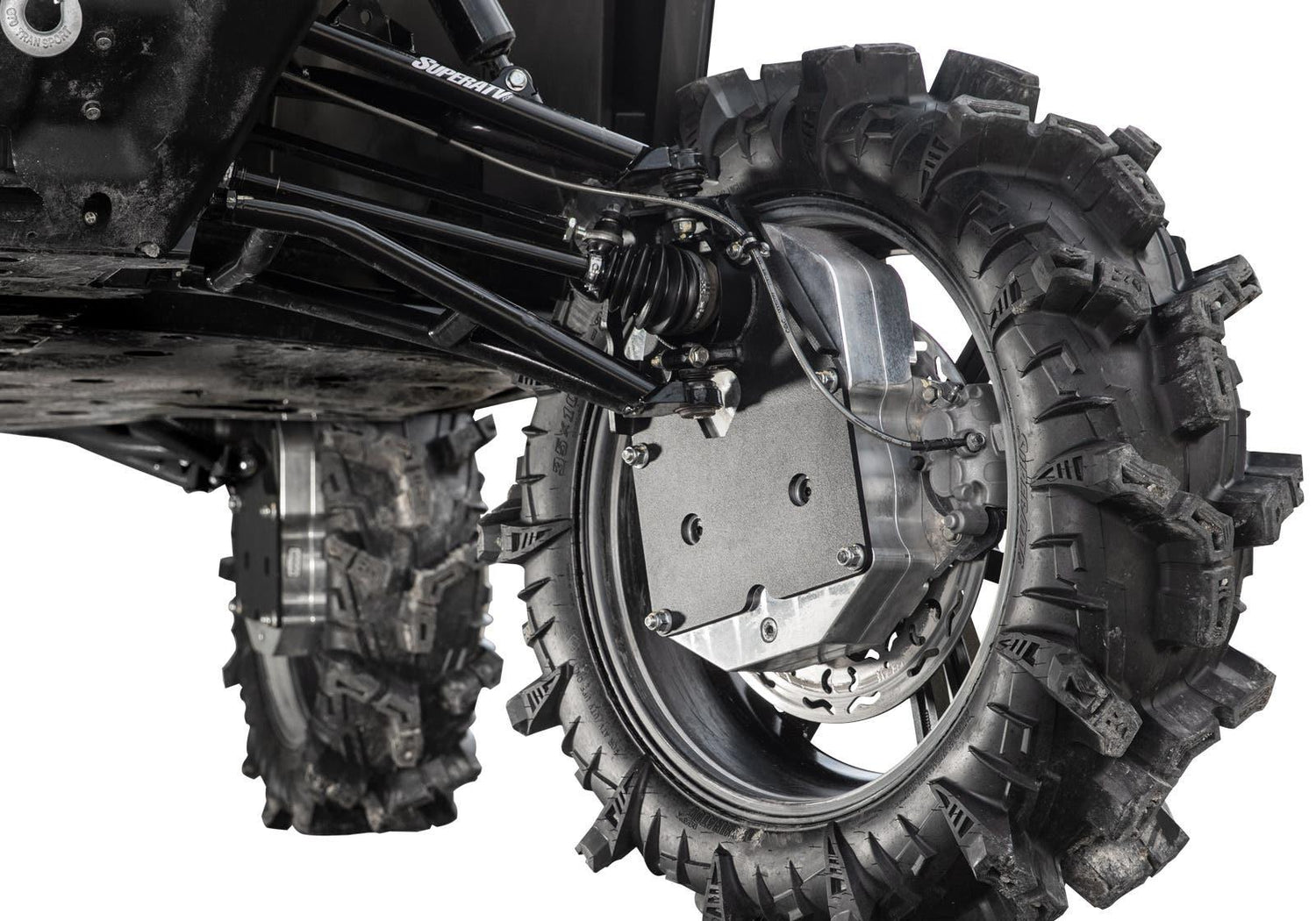

Can-Am Defender HD11 8in. Portal Gear Lift

Get Maximum Performance in Your HD11 with GDP Portals
Your Can-Am Defender HD11 is built to work hard and player harder; but theres still room for improvement. SuperATVs 8 GDP Portals are the ultimate upgrade. You get 8 of lift with a built-in gear reduction. This gives you more torque; better ground clearance; and the ability to run larger tires. Choose between a 45% and 60% gear reduction with a billet or cast housing for maximum power. Take it over the top with our dual-idler configuration that delivers ultimate strength with a 60% or 70% gear reduction.

What is a Dual Idler?
Perfection takes time. After years of research and development; weve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box; the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears dont do a thing if theyre not mated perfectly; though. Precision CNC grinding ensures ours do. Our gears are made from the industrys toughest 9310 steel alloy. Didnt think dual idlers mattered? With GDPs quality and experience; they finally do.

Take on any Terrain
The best part about our Defender HD11 8 GDP Portals is that you can choose a set that are tailored for your riding style. A 45%; 60%; or 70% gear reduction all give you serious power. You just have to pick one depending on how much torque and speed youre looking for. Youll get the power you need to take on rock crawling; the strength to spin oversized tires; and the control to push through deep mud with ease.

Protect Your Drivetrain with GDP Portals
We designed our Defender HD11 GDP Portals to put the gear reduction directly in the hub. This keeps your differential; prop shaft; and transmission safe from extra wear and tear. Plus; they keep the same suspension angle as stock; so your axles wont overextend.

Strength that Cant be Beat
Constant repairs are the last thing anyone wants. GDP Portals are engineered for durability; with a cast or billet aluminum housings and tough 5/16 backing plates made from advanced steel alloy. Theyre designed to withstand hard use while the lifetime warranty gives you more confidence to ride as hard as you want.

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood—gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets; Seals; and Bearings
Our portals use:

• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

Add a Frame Stiffener
Big tires and portals definitely take your Defender HD 11 to the next level; but they also put extra stress on your frame. A SuperATV Frame Stiffener helps reinforce your suspension so you can ride harder with added confidence.

Top-Tier Customer Service
Picking the right portals doesnt need to be complicated. Our customer service team is more than happy to help. Give us a call today and well point you in the right direction to get you ready for your next ride.

Can-Am Defender HD11 8 Portal Gear Lift Includes:
(4) Assembled portal hubs complete with 9310 gears; seals; output shaft; advanced gaskets; and thrust bearings
(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
(4) Specialized steel alloy backing plates
(4) Steel caliper mounting plates
(4) Shims
(16) Brake line clips
Extended brake lines
All required hardware; including recessed castle nut socket
Frame stiffener (optional)

Max Tire Size Recommendations for 8 Portal Gear Lift
Max Tire Size	Required Suspension
38	Stock suspension
If you need help figuring out which gear reduction is right for you; check out our portal gear reduction calculator.			Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub; larger tire sizes can be used.

Patent # 11;299;042

Patent # 11;318;787

• Can-Am Defender HD 11 Limited : 2026+
• Can-Am Defender HD 11 XMR w/Half Doors : 2026+
• Can-Am Defender HD 11 XT : 2026+
• Can-Am Defender HD 11 XT Cab : 2026+
• Can-Am Defender MAX HD 11 Limited : 2026+
• Can-Am Defender MAX HD 11 Lone Star : 2026+
• Can-Am Defender MAX HD 11 Lone Star Cab : 2026+
• Can-Am Defender MAX HD 11 XMR w/Half Doors : 2026+
• Can-Am Defender MAX HD 11 XT : 2026+
• Can-Am Defender MAX HD 11 XT Cab : 2026+

Wheel Requirements:

• 22 or larger wheel required
• Wheels cannot exceed 5 backspacing
• Wheels need to have a center hole of at least 3.25 (82.55mm) or require a 1 wheel spacer
