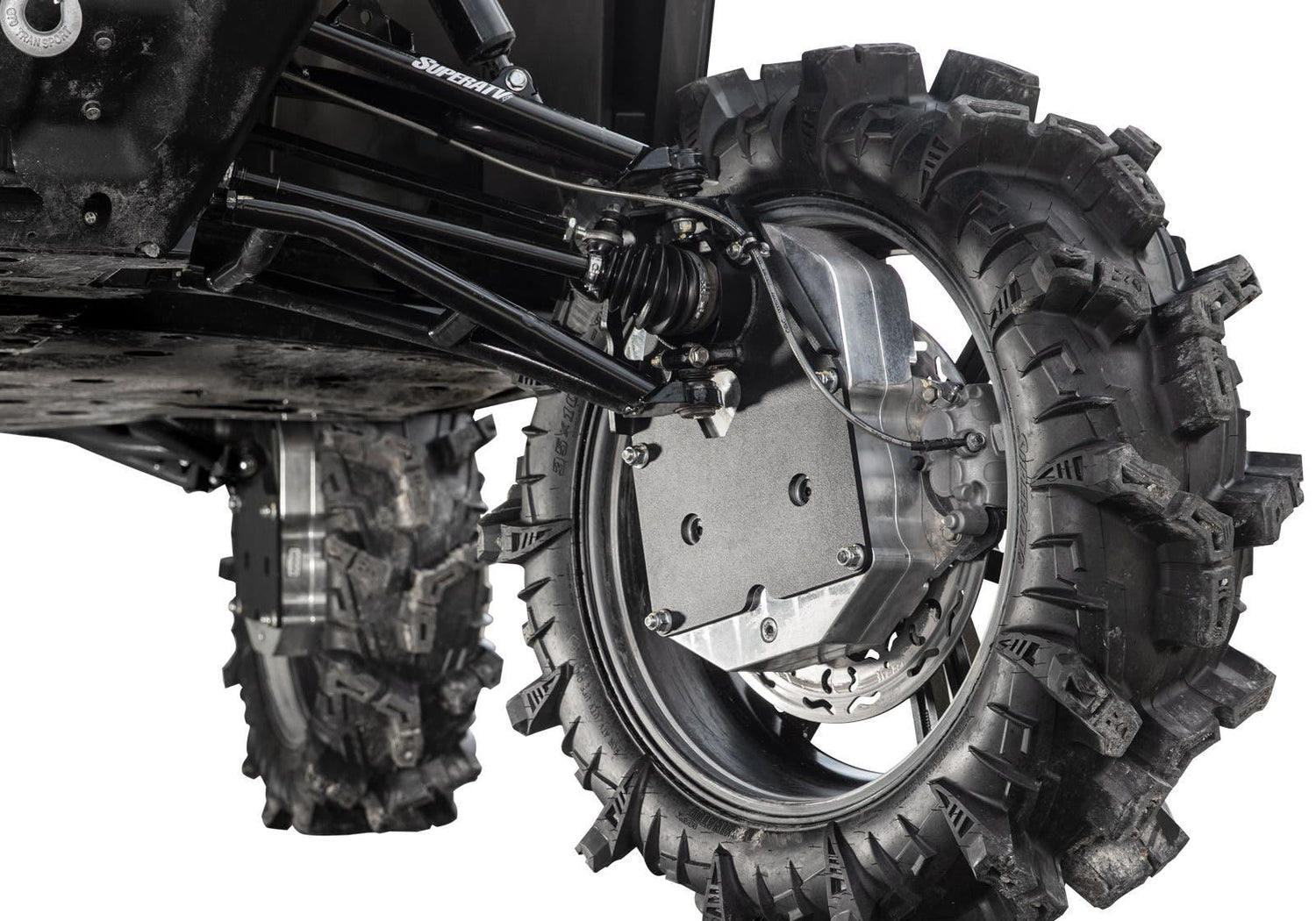

Can-Am Defender HD8 8in. Portal Gear Lift

Turn Your Defender HD8 into a Powerhouse
Your Can-Am Defender HD8 is built for versatility; but SuperATVs 8 GDP Portals push it far beyond stock performance. This upgrade delivers a full 8 inches of lift along with a built-in gear reduction that boosts torque where you need it most. Tackle rough terrain with greater clearance and confidently upgrade to larger tires. With options for 45%; 60%; or 70% gear reductions and your choice of billet or cast housings; you can fine-tune your setup for work or play.

What is a Dual Idler?
Perfection takes time. After years of research and development; weve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box; the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears dont do a thing if theyre not mated perfectly; though. Precision CNC grinding ensures ours do. Our gears are made from the industrys toughest 9310 steel alloy. Didnt think dual idlers mattered? With GDPs quality and experience; they finally do.

Conquer All Terrain
What makes our Defender HD8 8 GDP Portals stand out is how customizable they are to your needs. You can select either a 45%; 60%; or 70% gear reduction; depending on how much low-end torque or top-end performance you want. Both options deliver serious strength; giving you the confidence to conquer rocky terrain; run bigger tires; and cut through deep mud with total control. Its all about building your machine your way.

Reduce Stress on Your Drivetrain
With GDP Portals installed on your Defender HD8; the gear reduction happens right at the hub rather than inside the transmission. This design helps shield your drivetrain from unnecessary strain by easing the load on critical parts like the axles; driveshaft; differential; and transmission. In the long run; that added protection can mean fewer repairs and more time on the trail.

Ultra-Strong Build
You need parts that wont quit; and SuperATVs GDP Portals for the Defender HD8 deliver exactly that. Theyre available in cast or billet aluminum housings; so theyre engineered for long-lasting performance. Add in heavy-duty 5/16 steel alloy backing plates; and you get unmatched strength where it counts. Ride hard; work harder—these portals are made to handle it all. Plus; a lifetime warranty gives you added confidence every time you hit the trail.

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood—gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets; Seals; and Bearings
Our portals use:

• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

Frame Stiffener Required
An 8 portal lift paired with oversized tires can transform your Can-Am Defender HD8; but that extra capability comes with added strain on the frame. SuperATVs Frame Stiffener is designed to handle it; giving your machine the reinforcement it needs to stay rigid and reliable. Its built to keep your frame from flexing under demanding conditions.

Unbeatable Customer Service
Not sure which portals are right for your Defender HD8? Thats what were here for. Our knowledgeable team is ready to help you sort through the options and find the best GDP Portals for your setup. Reach out and well get you pointed in the right direction.

8 Portal Gear Lift Includes:
(4) Assembled portal hub boxes complete with 9310 gears; seals; output shaft; gaskets; and thrust bearings
(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
(4) Specialized steel alloy backing plates
(4) Steel caliper mounting plates
Extended brake lines
Steering stop kit (dual idler configuration only)
All required hardware; including recessed castle nut socket
Frame stiffener (must select at checkout)

Can-Am Defender Portal Gear Suspension Recommendations
Max Tire Size	Required Suspension Setup with 8 Portals
40	2 Forward Offset A-Arms
44	6 Lift Kit
If you need help figuring out which gear reduction is right for you; check out our portal gear reduction calculator.			Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub; larger tire sizes can be used.

Patent # 11;299;042
Patent # 11;318;787

• Can-Am Defender HD 8 : 2016-2021
• Can-Am Defender HD 8 DPS : 2016-2021
• Can-Am Defender HD 8 XT : 2016-2021
• Can-Am Defender HD 8 XT Cab : 2016-2021
• Can-Am Defender HD 8 XTP : 2018-2021
• Can-Am Defender MAX HD 8 : 2017-2021
• Can-Am Defender MAX HD 8 DPS : 2017-2021
• Can-Am Defender MAX HD 8 XT : 2017-2021
• Can-Am Defender MAX HD 8 XT Cab : 2017-2021

NOTE: Big Lift Kit or 2 Forward Offset A-Arms strongly recommended

Wheel Requirements:

• 22 or larger wheel required
• Wheels cannot exceed 5 backspacing
• Wheels need to have a center hole of at least 3.25 (82.55mm) or require a 1 wheel spacer
