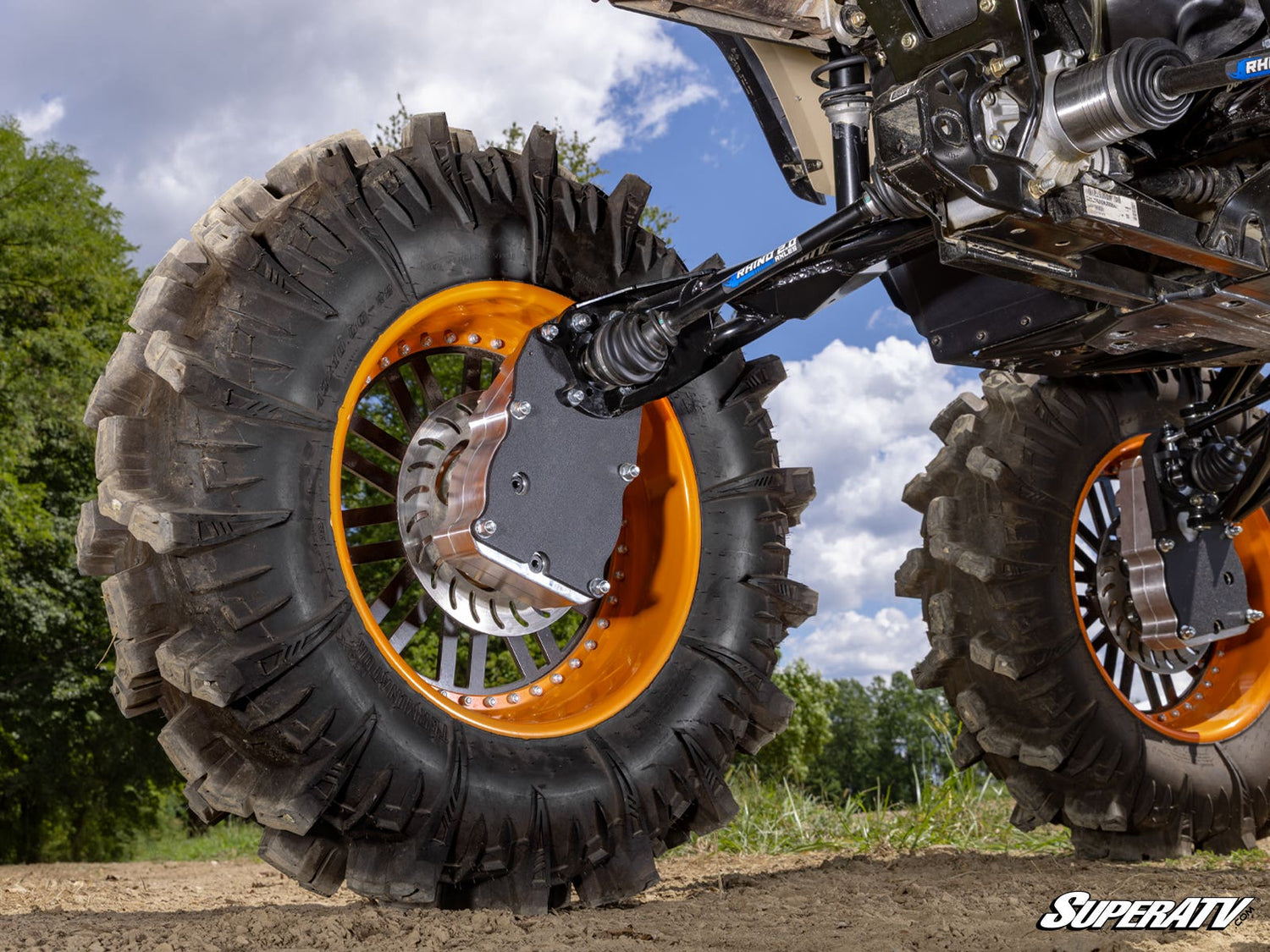

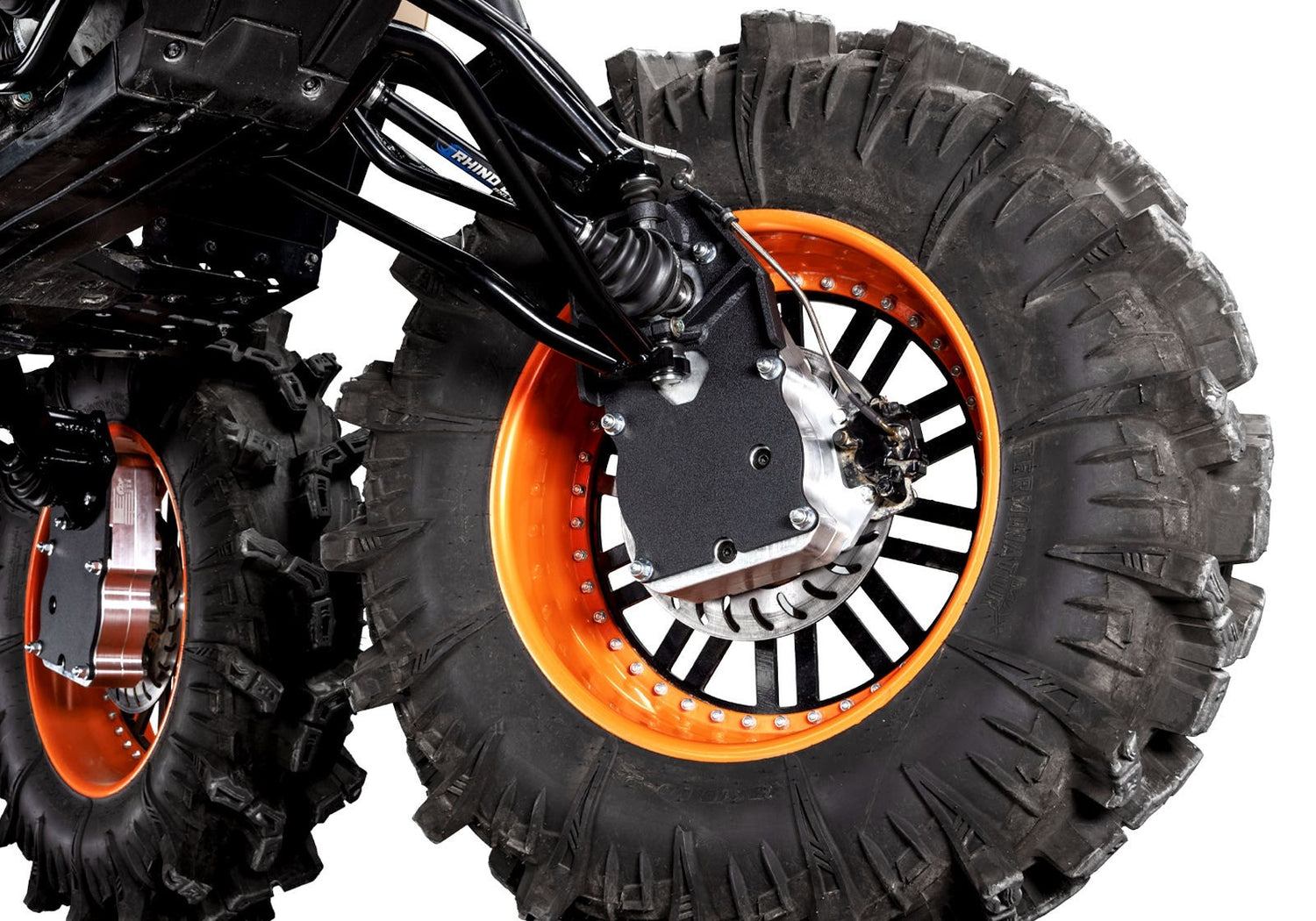

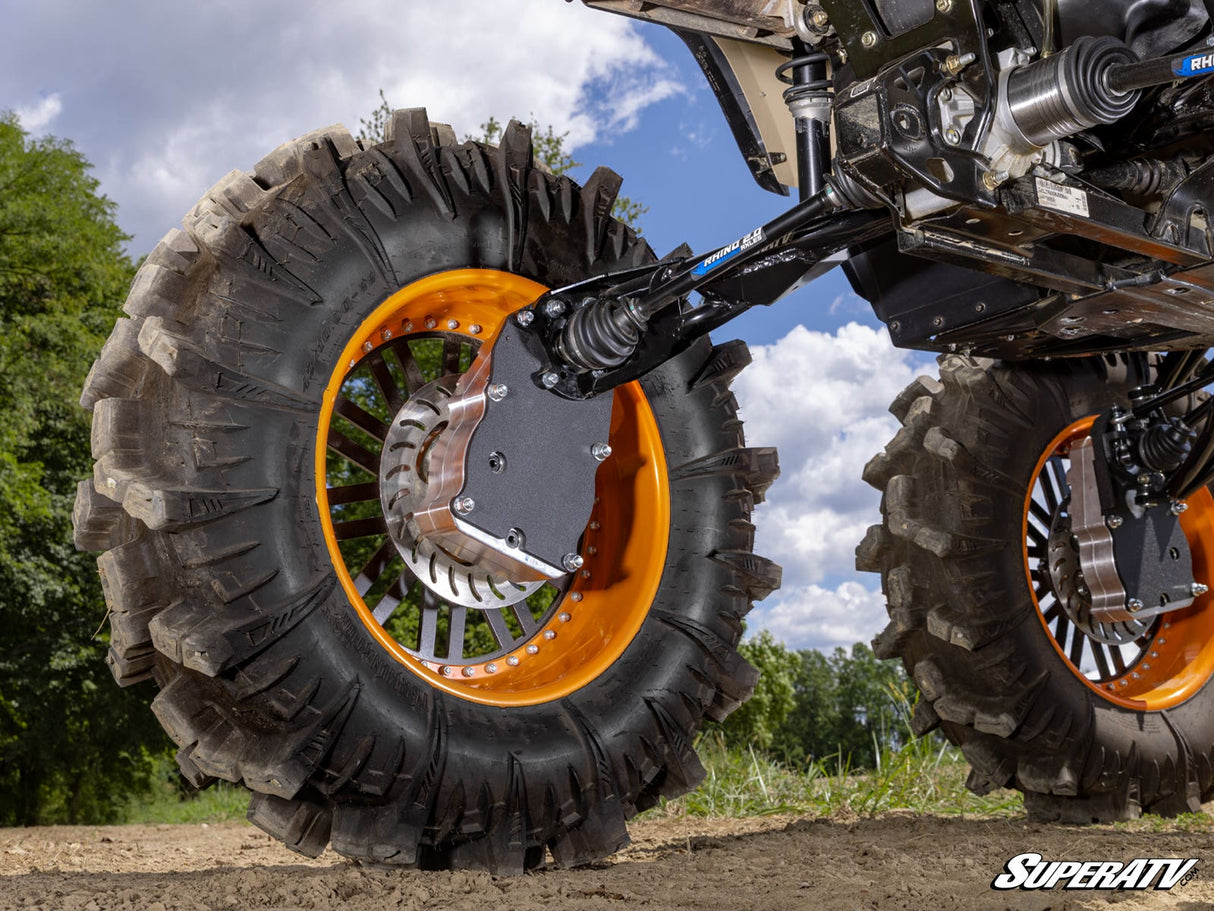

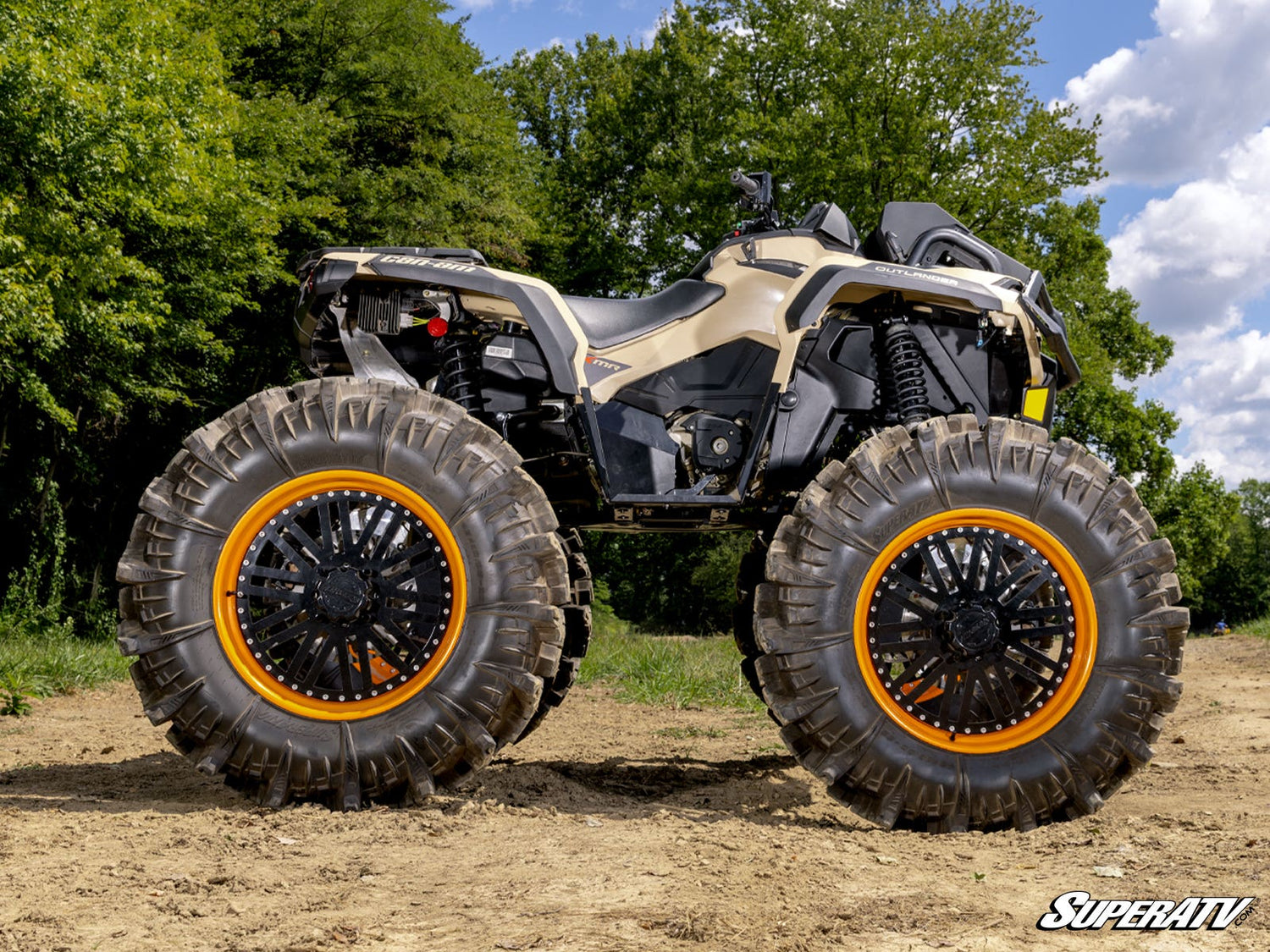

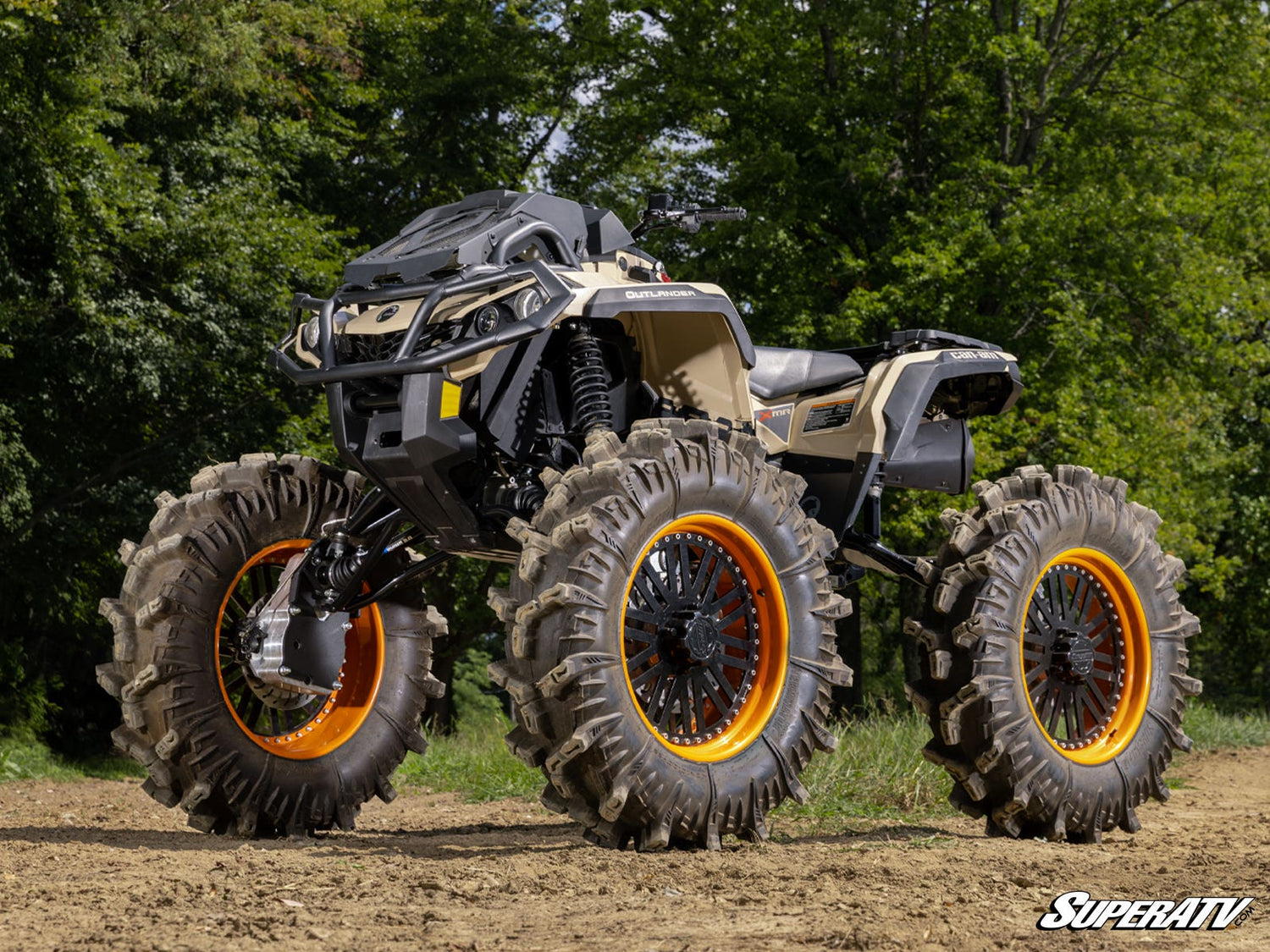

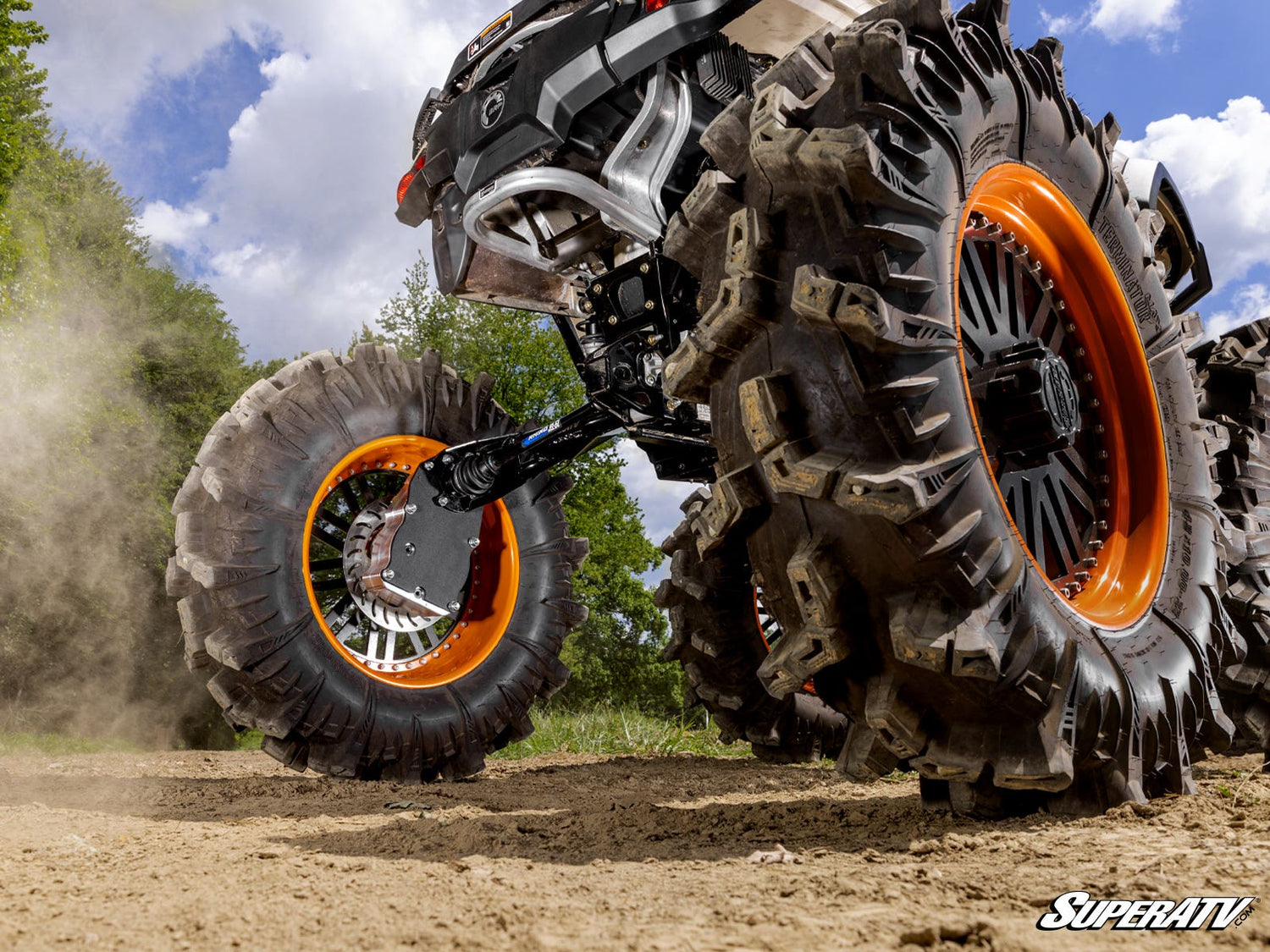

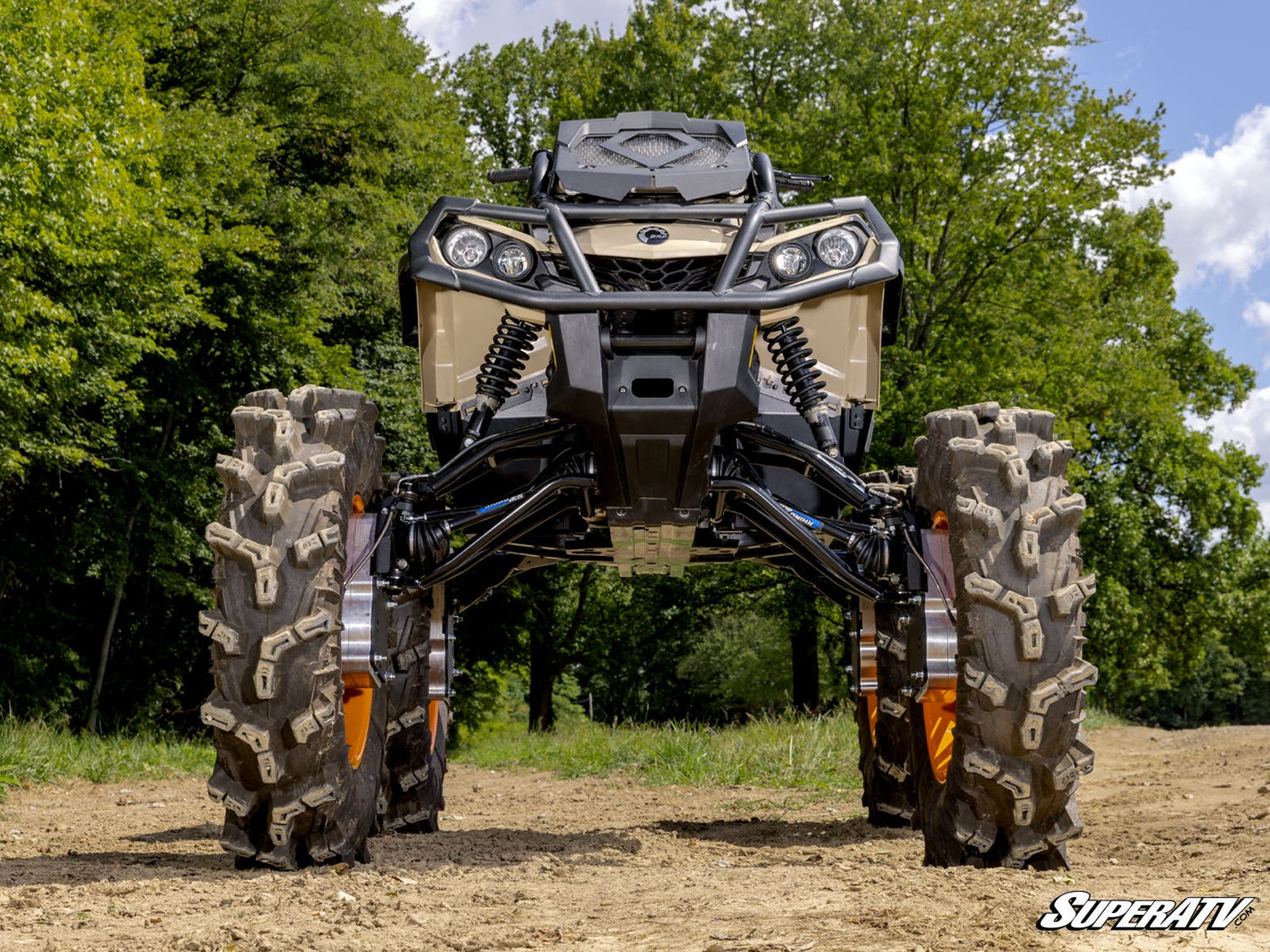

Can-Am Renegade 8in. Portal Gear Lift

8 GDP Portals for the Can-Am Renegade
Transform your four-wheeler into an absolute monster with SuperATVs Can-Am Renegade 8 Portal Gear Lift. Youll be able to dominate mud; rocks; and other obstacles with strength and lift that seem almost impossible. And the muscular 60% gear reduction paired with your preference of a cast or billet housing will make you completely unstoppable.

An Incredible Upgrade with a 60% Gear Reduction
When youre diving into deep; thick mud; you cant sacrifice power. Our 60% gear reduction restores the low-end power that big tires typically take away. That means your Renegade will have the power to plow through the deepest mud even when cranking huge; heavy tires.

Protects Your Drivetrain
With the gear reduction built into the wheel hub; our GDP portals take the load off the rest of your drivetrain. They take on the tough work; protecting parts like your axles; differential; driveshaft; and transmission from straining to move large tires.

GDP Portals are Unmatched
Our GDP 8 Portals are built to handle any abuse you put them through. You can choose between cast or billet aluminum. Theyre both ultra-strong and ready to take a beating. Plus; the strong steel alloy plates give them extra armor.

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood —gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets; Seals; and Bearings
Our portals use:

• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

The Customer Service You Deserve
We have unbeatable customer service. Theyre here to help you decide which 8 Portal Gear Lift works best for you and your riding style. Go ahead—give us a call today.

Can-Am Renegade 8 Portal Gear Lift Includes:

• (4) Assembled portal hub complete with 9310 gears; seals; output shaft; advanced gaskets; and thrust bearings
• (4) Universal hubs and stainless steel slotted rotors with lugs
• (4) Specialized steel alloy backing plates
• (4) Steel caliper mounting brackets
• (16) Shims
• (12) Rear A-arm bushings
• (6) Steel sleeves
• Extended brake lines
• All required hardware; including recessed castle nut socket

Can-Am Renegade Max Tire Size
Max Tire Size	Required Suspension Setup with 8 Portals
32	Stock suspension
35	Can-Am Renegade Footwells
39	Can-Am Renegade 5 Lift Kit
45	Footwells + Lift Kit
If you need help figuring out which gear reduction is right for you; check out our portal gear reduction calculator .			Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub; larger tire sizes can be used.

Patent # 8;985;264; 11;015;681; 11;299;042; 11;554;662; 12;005;776

• Can-Am Renegade 570 : 2019+
• Can-Am Renegade 650 XMR : 2022+
• Can-Am Renegade 850 : 2019+
• Can-Am Renegade 850 XXC : 2019+
• Can-Am Renegade 1000 XMR : 2019+
• Can-Am Renegade 1000 XXC : 2019+

NOTE: This portal kit requires the use of SATV rear trailing arms

Wheel Requirements:

• 22 or larger wheel required
• Wheels cannot exceed 4 backspacing
• Wheels need to have a center hole of at least 3.25 (82.55mm) or require a 1 wheel spacer
