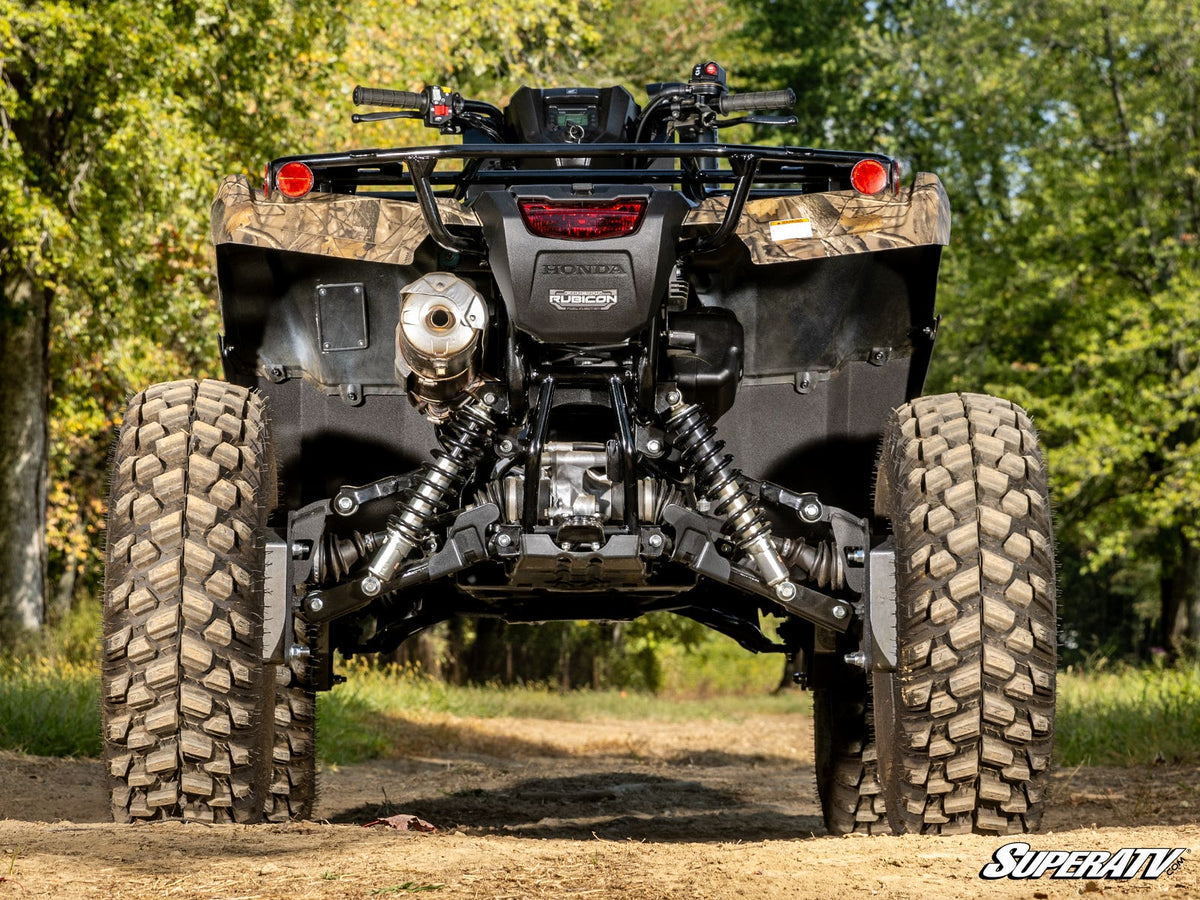

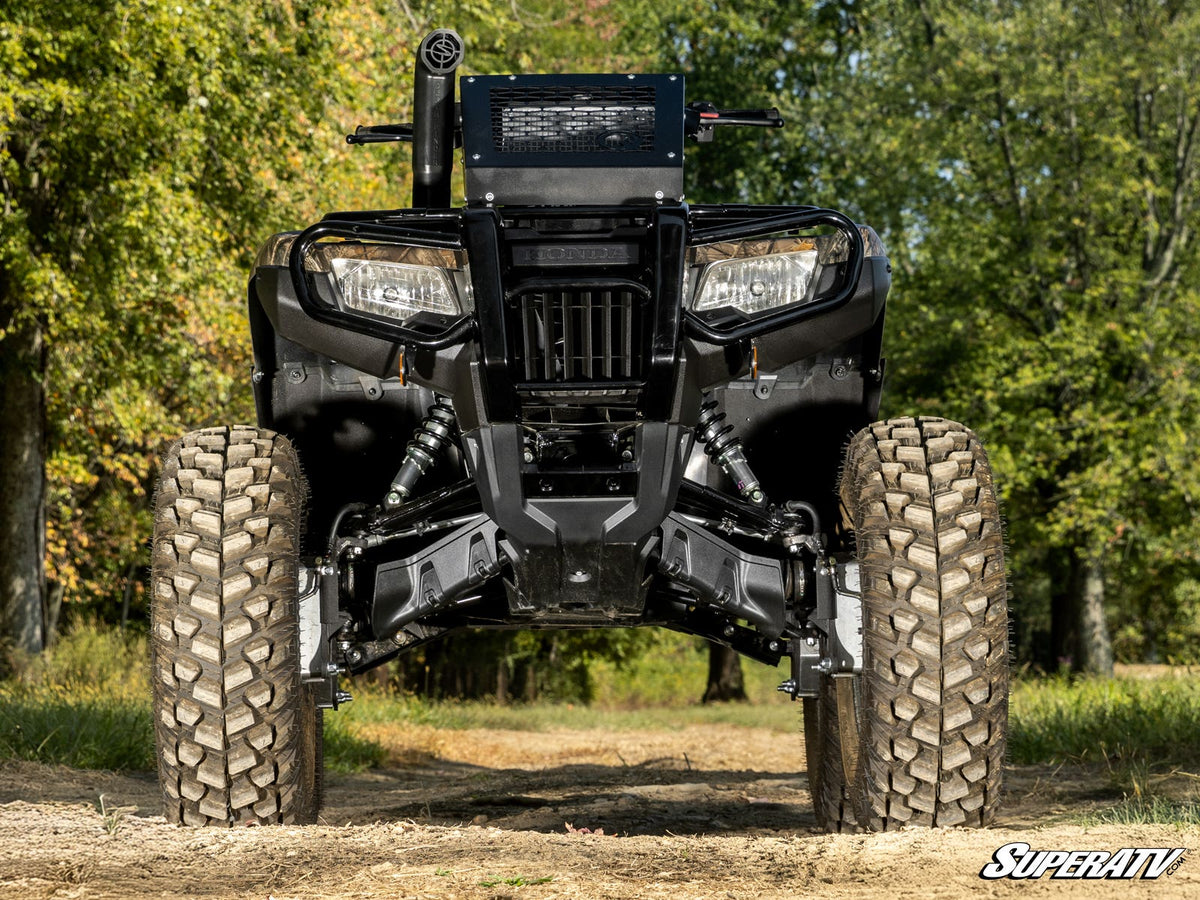

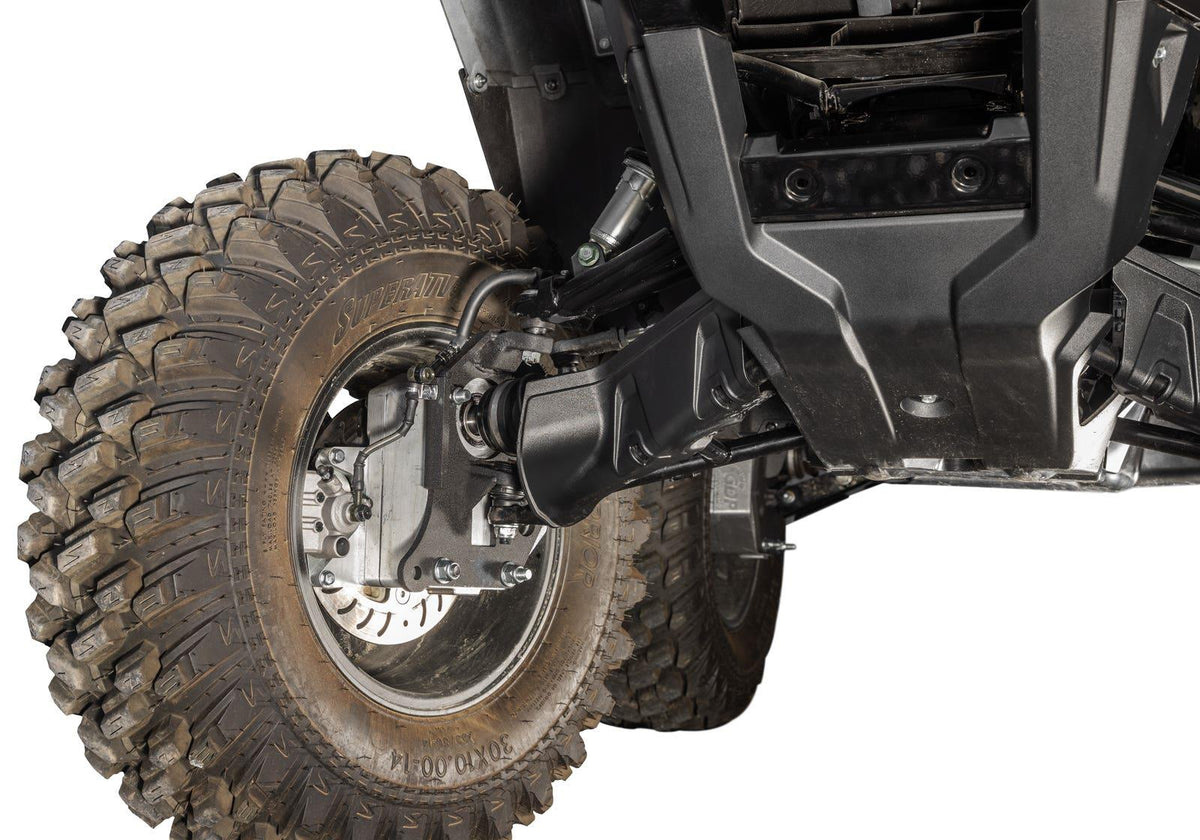

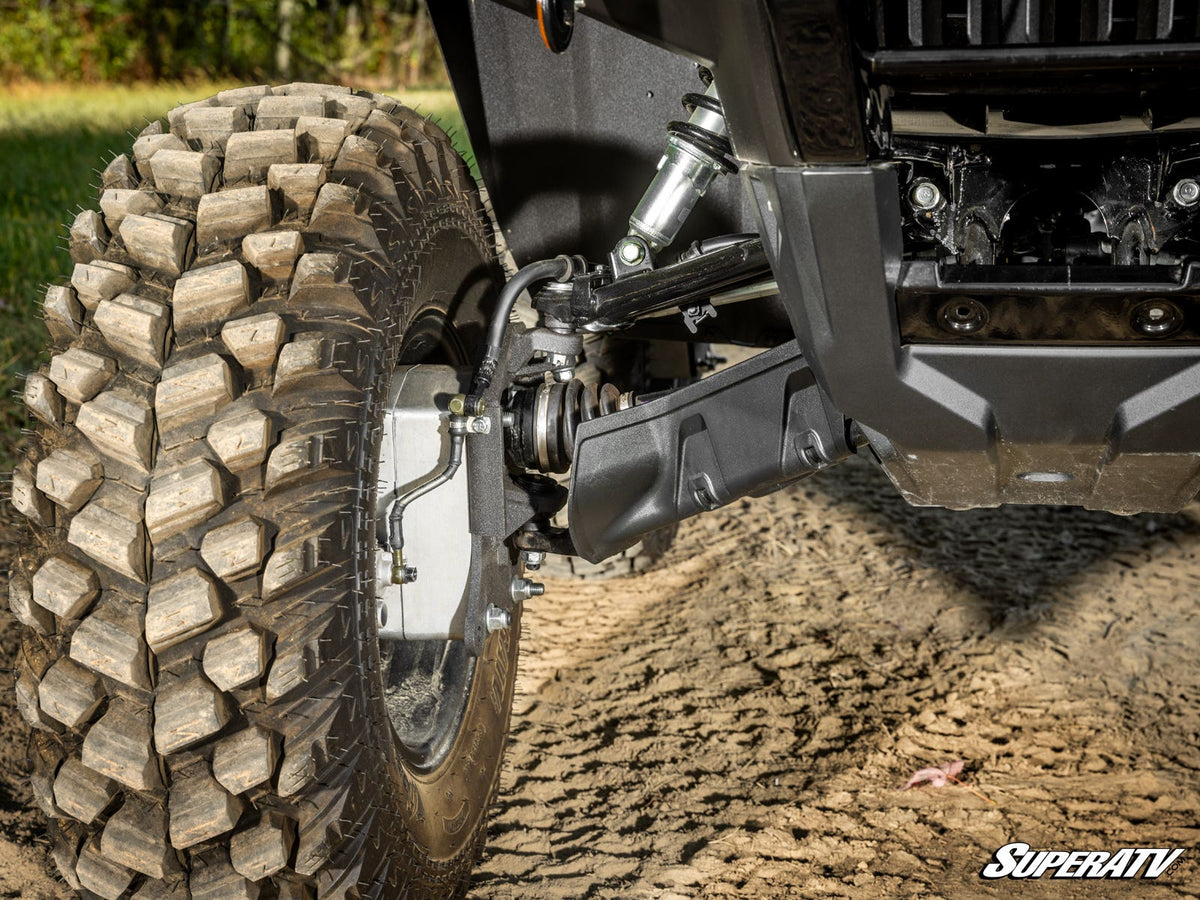

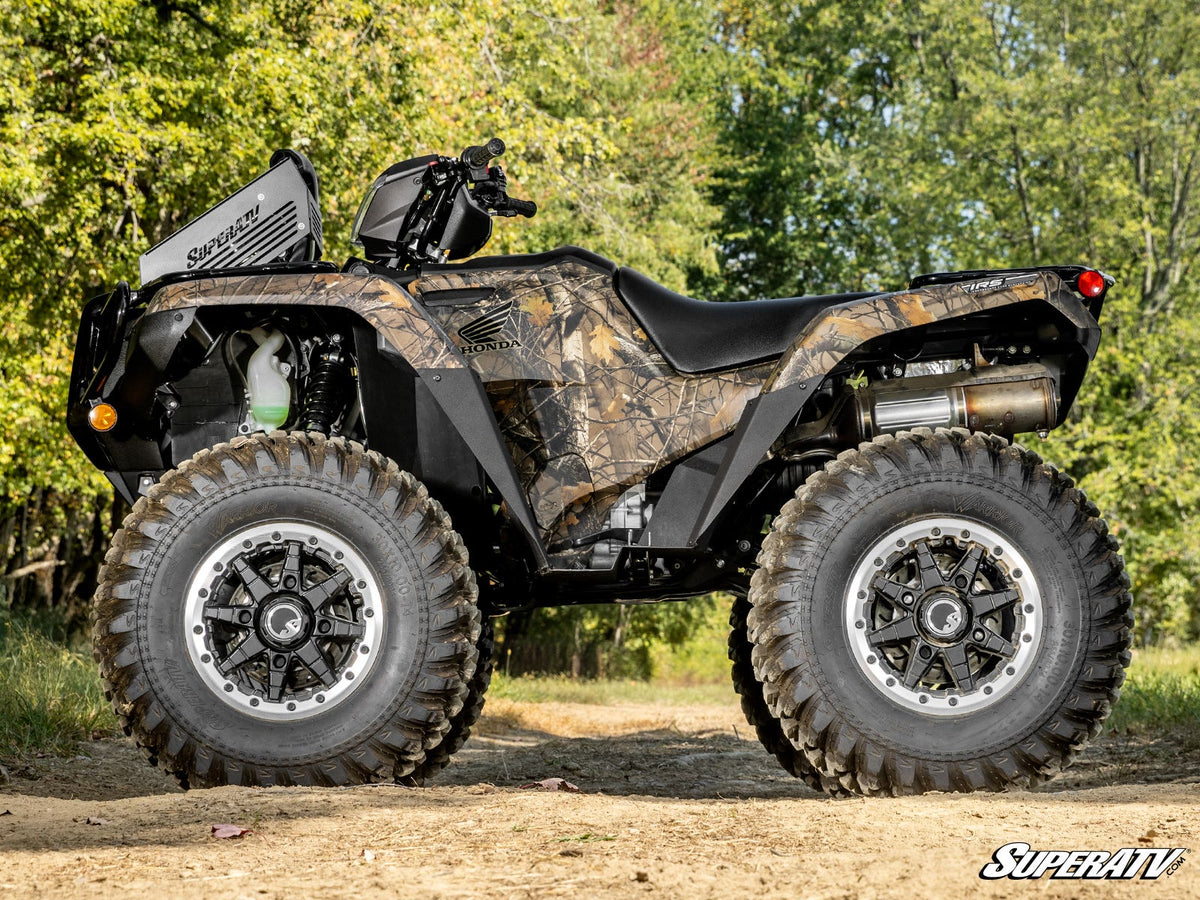

Honda Foreman 4in. Portal Gear Lift

Maximize Your Honda Foremans Performance with GDP Portals
Your Honda Foreman has always been good to you. Take its performance over the top with SuperATVs 4 Portal Gear Lift. Choose between a 15% or 30% gear reduction to boost torque. With our portals; you get more ground clearance and the ability to run larger tires. Theyre the ultimate upgrade for the ultimate rider.

Get the Torque You Need
You get to customize your torque and acceleration with a choice between a 15% or 30% gear reduction. For maximum torque and larger tires; youll want to go with a 30% reduction. Itll give you the power to take off from a dead stop or haul large loads. Choose 15% to maintain a high top speed while still getting that bump in torque.

Protect Your Drivetrain
When youre throwing all that extra weight around; you can cause damage to your drivetrain. GDP Portals put the gear reduction in the hub; so your drivetrain gets protected from extra wear. Plus; our Honda Foreman portal gear lift keeps your factory suspension to give you cooler-running axles.

The Toughest Portals You Can Get
When youre hitting the trails with your buddies; the last thing you need is to break down. Thats why our cast and 6061 billet aluminum housings are designed for rough terrain and hard rides. Theyre backed by our advanced steel backing plates that give them unmatched strength.

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood—gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets; Seals; and Bearings
Our portals use:

• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

Top-Rated Customer Service
Still not sure exactly what you need? Weve got a dedicated team to help you make the right choice. Give us a call so we can get the perfect set of portals in your hands today.

4 Portal Gear Lift Includes:

• (4) Assembled portal hub boxes complete with 9310 gears; seals; output shaft; gaskets; and thrust bearings
• (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
• (4) Specialized steel alloy backing plates
• (2) Steel caliper mounting plates
• (2) Caliper mounting plate shims
• Extended brake lines
• All required hardware; including recessed castle nut socket

Honda Foreman Max Tire Size Recommendations
Tire Size	Required Suspension Setup with 4 Portals
26	Stock
If you need help figuring out which gear reduction is right for you; check out our portal gear reduction calculator.		Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub; larger tire sizes can be used.

Patent # 11;299;042

Patent # 11;318;787

• Honda Foreman 500 : 2015-2019
• Honda Foreman 520 : 2020+

NOTE: Only compatible on machines with IRS (Independent Rear Suspension)

Wheel Requirements

• 14 or larger wheel required
• Cannot exceed 5 backspacing
• Not compatible with dual beadlock wheels
• Wheels need to have a center hole of at least 3.25 (82.55mm) or require a 1 wheel spacer
