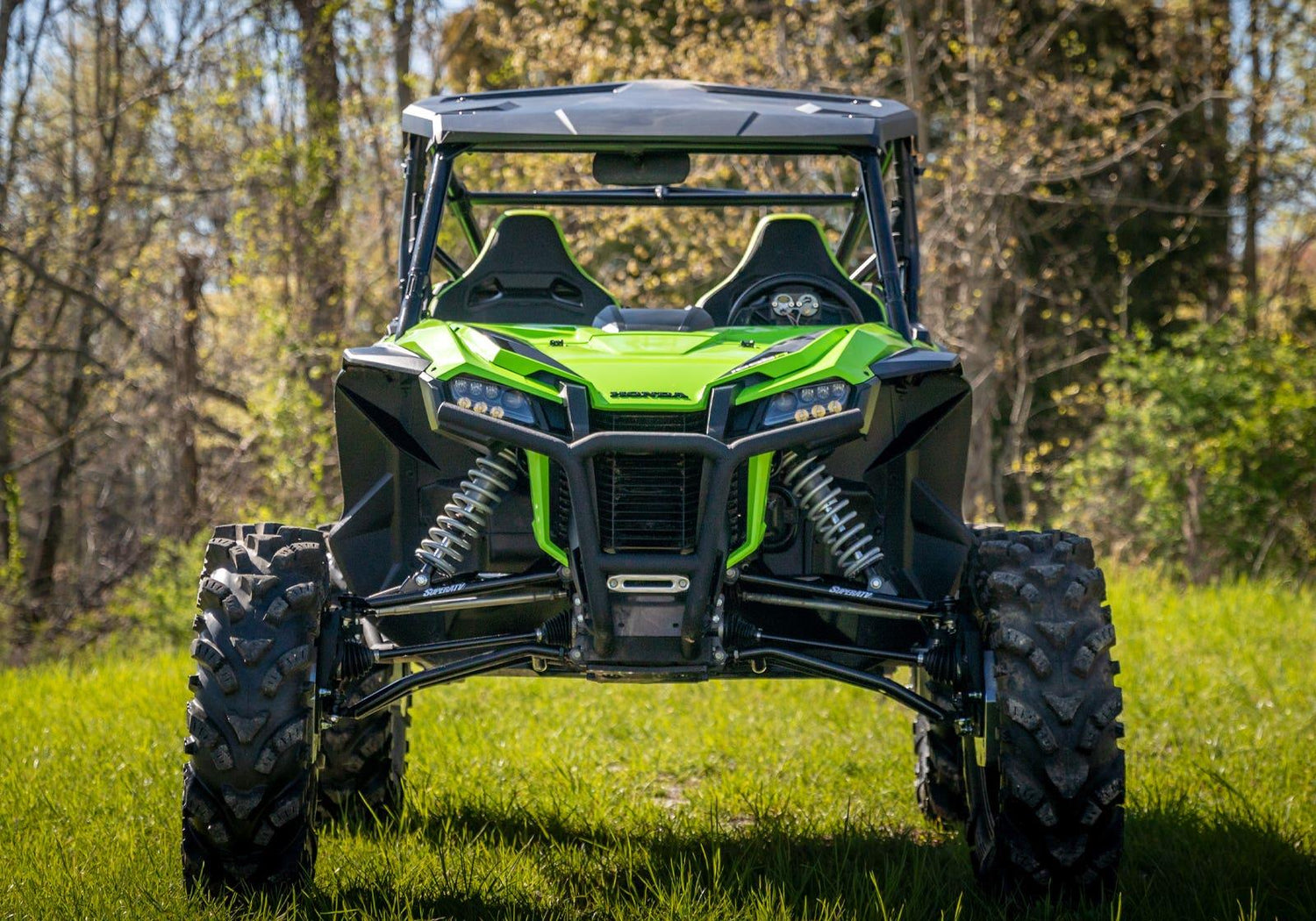

Honda Talon 1000R 6in. Portal Gear Lift

GDP Portals Cant Be Beat
At SuperATV; we dont put anyone in a box. Thats why our Gen 3 portals are all about giving you options. Get our 6 Portal Gear Lift for your Honda Talon 1000R and you get to tell us how much gear reduction you want and what kind of housings you get. Because of this; weve got something for everyone. Choose a 30%; 45%; or 60% gear reduction and opt for dual idler gears to boost your strength. We have the options that make GDP perfect for you.

What is a Dual Idler®?
Perfection takes time. After years of research and development; weve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box; the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears dont do a thing if theyre not mated perfectly; though. Precision CNC grinding ensures ours do. Our gears are made from the industrys toughest 9310 steel alloy. Didnt think dual idlers mattered? With GDPs quality and experience; they finally do.

Great for Any Rider
If youre all about going big with massive tires and tons of power; our 45% or 60% gear reductions are perfect for you. If youre wanting to fly through trails with plenty of punchy torque; go with a 30% reduction. No matter what you choose; you cant go wrong with GDP.

A Gear Reduction That Protects Your Drivetrain
Portal gear lifts put the gear reduction directly in the hub; so you dont have to worry about any unnecessary stress being placed on your drivetrain. Because of this; your differential; prop shaft; axles; and transmission can do their job without acquiring any early wear and tear. This lets you do more and ride harder without worrying about your machines most vital parts.

The Strongest Portals Around
Cutting corners isnt in our nature—especially when it comes to strength. Weve put in years of research to ensure that youre getting the strongest portals possible. You get to pick between cast or billet aluminum aluminum housings that take advantage of our 5/16 advanced steel backing plates. No matter which direction you go; youre getting portals that are second to none.

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood—gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets; Seals; and Bearings
Our portals use:

• Advanced Thermo-Tork® Gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

Bolster Your UTV with a Frame Stiffener
The Honda Talon 1000R doesnt like to take it slow and neither do you. If you load it up with 6 GDP Portals and some monster tires; you can bend your frame. Thats why we highly recommend a frame stiffener. It bolsters your frame; so you can ride however you want.

Top-Rated Customer Service
Still need a little help getting exactly what you need? Weve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.

6 Portal Gear Lift Includes:
(4) Assembled portal hub boxes complete with 9310 gears; seals; output shaft; Thermo-Tork® gaskets; and thrust bearings
(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
(4) Specialized steel alloy backing plates
(4) Steel caliper mounting plates with spacers
(8) Caliper mounting plate shims
(2) Steel steering arms
(2) Rear adapter plates
(2) Preinstalled lower ball joints
Extended brake lines
All required hardware; including recessed castle nut socket
Frame stiffener (must select at checkout)

Honda Talon 1000R Portal Gear Reduction Recommendations
Max Tire Size	Required Suspension Setup with 6 Portals
38	Stock
38	1.5 High Clearance A-Arms
40	3 Lift Kit
40	1.5 High Clearance A-Arms and 3 Lift Kit
If you need help figuring out which gear reduction is right for you; check out our portal gear reduction calculator.
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub; larger tire sizes can be used.

Patent # 11;299;042

Patent # 11;318;787

• Honda Talon 1000R : 2019+
• Honda Talon 1000R-4: 2023+

Wheel Requirements:

• 18 or larger wheel required
• 18 wheels cannot exceed 4-1/2 backspacing
• 20 and larger wheels cannot exceed 5 backspacing
• Wheels need to have a center hole of at least 3.25 (82.55mm) or require a 1 wheel spacer
