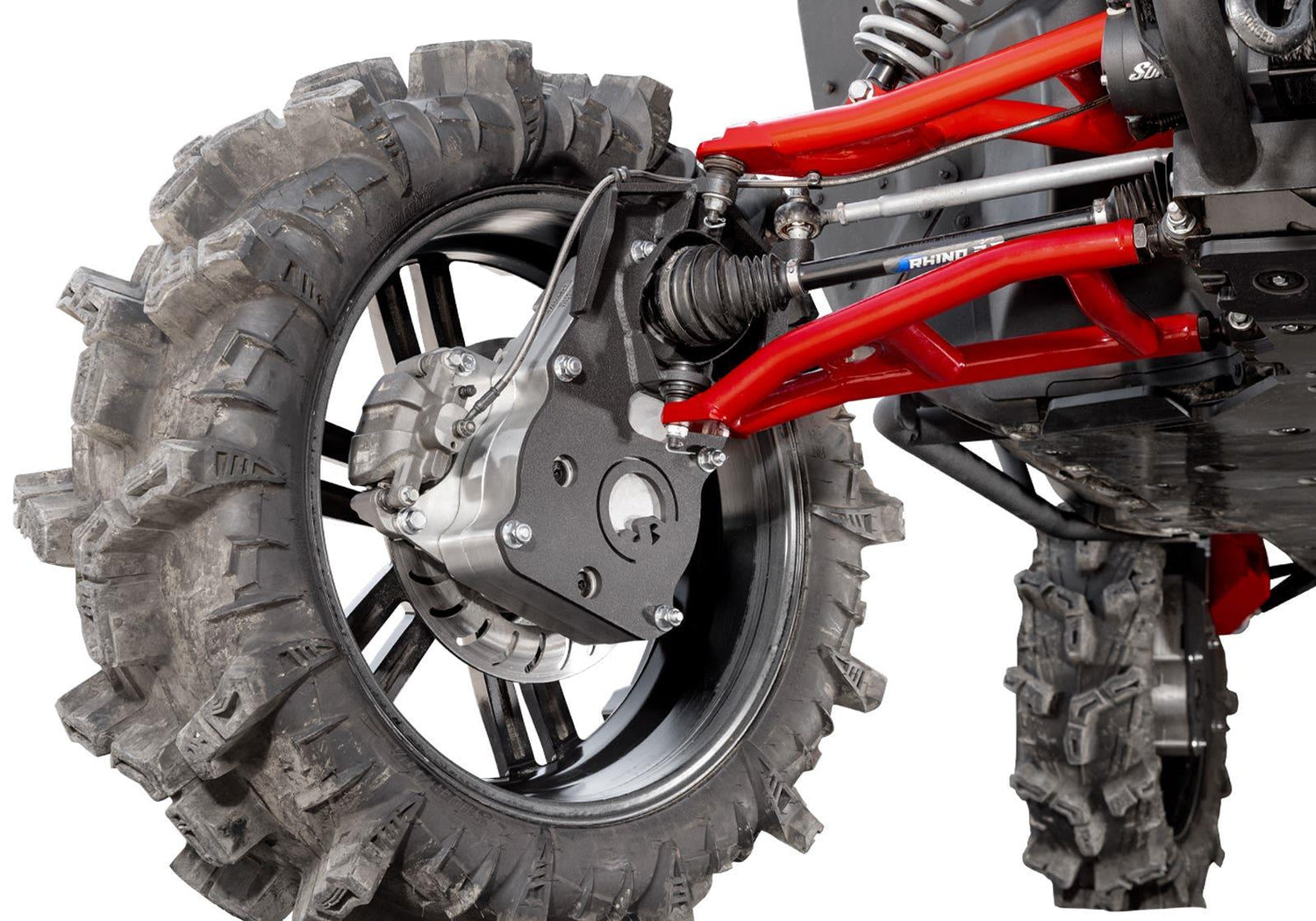

Honda Talon 1000X 8in. Portal Gear Lift

Gear Down and Go Big
Hondas most fun side-by-side is about to get even better. Put 8 GDP Portals on your Honda Talon 1000X and you open up a whole new world of fun. With a huge increase in ground clearance and a massive 45% or 60% gear reduction; youll blaze a new trail and go everywhere your buddies cant.

GDP—the Most Trusted Name in Portals
When you choose GDP; youre not choosing the odd man out. More people roll on GDP portals than any other portal system. Theyre the most trusted and the most trail proven. And with thousands of riders hitting the trail every weekend; its about time you joined the club.

Perfect for Mud
Portals and mud go together like chocolate and peanut butter. With all that extra ground clearance and torque-boosting 45% gear reduction; youll roll over and push through any mud hole you find. Run monstrous tires and dominate the deepest sludge with a 60% gear reduction. If you want to do mud the right way; you want GDP.

A Gear Reduction That Protects Your Drivetrain
A portal gear reduction protects your drivetrain because the reduction happens in your hub instead of in your transmission. That means your axles; differential; prop shaft; and transmission will wear less than stock even if you ride harder than stock. Its a win-win.

Learn more about how tire size and gear reduction can unleash your machines potential.

Unmatched Gear Material
Our 9310 alloy steel gears make these the most top-of-the line gears you can get. On top of being bulletproof; these precision-ground gears mate perfectly each and every time so you get smooth; quiet portals no matter how hard you ride.

Stronger Housings by Design
Think you can get a stronger portal housing than GDP? Think again. It takes precision engineering; consistency; and unmatched experience to make a housing that can stand the test of time. Thats exactly what weve done. So whether you get a cast aluminum or USA-made billet aluminum housing; youre getting the most used; most abused; and most trusted housing on the planet.

• Our housings are reinforced in all the right places
• Theyre built with better oil flow and gearing forces in mind
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

The Strongest Portal Backing Plates You Can Get
You cant skimp on backing plates because theyre what holds your hubs to your suspension. Thats why we use a premium steel alloy thats stronger than chromoly and designed for ultra-high force applications. At 5/16 thick; these hand-weld plates wont bend or break even when youre hitting jumps and diving into bounty holes. Theyre the last thing thatll break on your machine.

Advanced Gaskets and Seals
Whether you go with cast or billet; both housings use:

• Advanced Thermo-Tork® gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
• Rubber O-rings that completely seal the housings
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks

Bearings That Rock
We dont cut corners on our bearings either—from top to bottom GDP is built for battle. Our output shaft rolls on a double-angular contact bearing thats designed to survive you smashing into rocks and stumps. Theyll keep your output running true no matter what.

Universal Hubs and Slotted Rotors
Our precision-ground; stainless steel slotted rotors stay cool to give you the braking power you need when you need it. They come with 4/156; 4/137; 4/115; and 4/110 bolt patterns and lugs. These are the most popular bolt patterns and it makes your life easy—just about any side-by-side wheels you get your hands on will work with these hubs. We invented the tapered output shaft that our hubs attach to; which provides a more secure lock that wont wobble or wear over time.

Reinforce Your UTV with a Frame Stiffener
The Talon is brutally fast and an awesome Honda side-by-side; but that doesnt mean it can handle everything. An 8 GDP portal kit is a heavy-duty piece of hardware for heavy-duty machines. Thats why 8 portals require a frame stiffener. Trust us—weve hit enough bumps to know that bending a stock frame can happen. Dont do it. Get a frame stiffener.

Top-Rated Customer Service
Still need a little help getting exactly what you need? Weve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.

Honda Talon 1000X Portal Gear Suspension Recommendations
Max Tire Size	Required Suspension Setup with 8 Portals
35	Stock
35	2 Lift Kit
40	1.5 Forward Front A-Arms
40	1.5 Forward Front A-Arms and 2 Lift Kit
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub; larger tire sizes can be used.

8 Portal Gear Lift Includes:
(4) Assembled portal hub boxes complete with 9310 gears; seals; output shaft; Thermo-Tork® gaskets; and thrust bearings
(4) Specialized steel alloy backing plates
(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
(2) Rear bearing carriers
(4) Steel caliper mounting plates
(2) Heavy-duty lower ball joints preinstalled
(8) Caliper mounting plate spacers
Extended brake lines
All required hardware; including recessed castle nut socket
Frame stiffener (must select at checkout)

Patent # 11;299;042

• Honda Talon 1000X : 2018+
• Honda Talon 1000X-4 : 2020+

Wheel Requirements:

• 22 or larger wheel required
• Wheels cannot exceed 5 backspacing
• Wheels need to have a center hole of at least 3.25 (82.55mm) or require a 1 wheel spacer
