Polaris Ranger XP 1000 Diesel 8in. Portal Gear Lift

Gear Down and Go Big

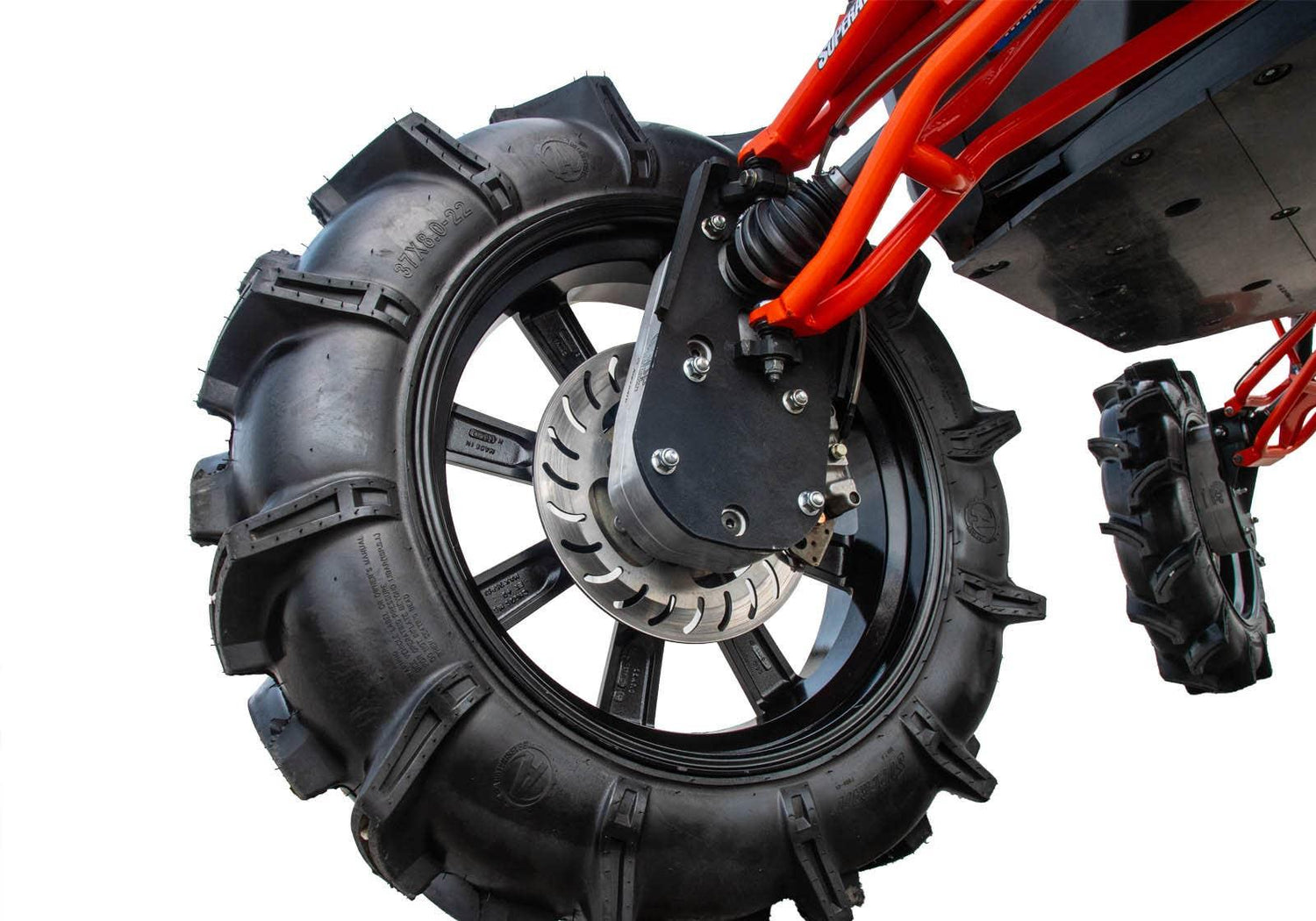

SuperATVs GDP 8 Portal Gear Lift for the Polaris Ranger XP 1000 Diesel is geared down so you can go big. It gives you a lift and the choice of a 45% or 60% gear reduction. You get the clearance to run bigger tires and the massive boost in torque you need to turn them. The lift and gear reduction are in the hub; so they maintain suspension geometry and reduce drivetrain stress. With huge clearance; huge torque; and optional billet aluminum housings; you can turn your 1000 Diesel into a mud boggin monster.

GDP—the Most Trusted Name in Portals
How do you know you can trust GDP to make all your Ranger 1000 Diesel dreams come true? Just ask any of the thousands of riders out there getting neck deep in mud every weekend. More riders roll on GDP portals than any other portal system. With more hours of real-world riding logged on our portals than any other brand; you can count on their quality; their reliability; and; most of all; their awesomeness.

45% and 60% Gear Reductions Are Perfect for Mud
With 8 portals and a 45% or 60% gear reduction; you get clearance for huge tires and a massive boost in torque. Itll turn monster tires like theyre stock. Your Ranger will be the most powerful mud flinging machine around. With 8 portals installed; the partys on four wheels.

A Gear Reduction That Protects Your Drivetrain
Portals put the gear reduction in the hub which means your drivetrain benefits from the gear reduction just as much as the rest of your machine does. Your axles; differential; prop shafts; and transmission are under less stress with portals installed. That means less wear and more riding.

Learn more about how tire size and gear reduction can unleash your machines potential.

Unmatched Gear Material
Our top-of-the-line gears are simply the best. Dont believe us? We make them with 9310 alloy steel which is one of the strongest gear materials you can get. Plus; our gears are precision ground for perfect mating every time; meaning your portals will run quiet and smooth. They cant be beat.

Stronger Housings by Design
We have the strongest portal housings because we know what it takes to make them strong. After making tens of thousands of them; weve refined their design so that whether you get cast or USA-made billet aluminum housings (that also happen to look awesome) youll get superior strength from the people who know how to make it best.

• Our housings are reinforced in all the right places
• Theyre built with better oil flow and gearing forces in mind
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

The Strongest Portal Backing Plates You Can Get
These are the strongest portal backing plates around. We use an advanced steel alloy thats even stronger than chromoly and we make them 5/16 thick. We dont compromise on strength and; if you want the best portals; neither should you.

Advanced Gaskets and Seals
Whether you go with cast or billet; both housings use:

• Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks

Bearings That Rock
Our output shaft is only as strong as the bearing that holds it; thats why we use a double-angular contact bearing. Its designed to take huge hits from every direction without wearing prematurely. Its the battle-tank of bearings. Built for battle components make GDP the best.

Universal Hubs and Slotted Rotors
Our precision-ground; stainless steel slotted rotors stay cool to give you the braking power you need when you need it. They come with 4/156; 4/137; 4/115; and 4/110 bolt patterns and lugs so you can fit wheels built for almost any side-by-side on these hubs. You can ride any way you want. We invented the tapered output shaft that our hubs attach to; which provides a more secure lock that wont wobble or wear over time.

Reinforce Your UTV with a Frame Stiffener
An 8 portal kit is a heavy-duty piece of hardware for heavy-duty machines; and as awesome as the Ranger XP 1000 is; its not quite up to snuff. Thats why we highly recommend a frame stiffener. Trust us—weve hit enough bumps to know that bending a stock frame can happen. Dont do it. Get a frame stiffener.

Top-Rated Customer Service
Still need a little help getting exactly what you need? Weve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.

8 Portal Gear Lift Includes:
(4) Assembled portal hub boxes complete with 9310 gears; seals; output shaft; gaskets; and thrust bearings.
(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
(4) Specialized steel alloy backing plates
(4) Steel caliper mounting plates
All required hardware; including recessed castle nut socket
Extended brake lines

Polaris Ranger 1000 Diesel Portal Gear Suspension Recommendations
Max Tire Size	Required Suspension Setup with 8 Portals
34	Stock
37	1.5 Forward Front A-Arms	38	1.5 Forward Front A-Arms and 3 Lift Kit
40	6 Lift Kit
Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub; larger tire sizes can be used.

Patent # 11;299;042

• Polaris Ranger XP 1000 Diesel : 2015-2018
• Polaris Ranger XP 1000 Diesel Crew : 2015-2018

Wheel Requirements:

• 22 or larger wheel required
• Wheels cannot exceed 5 backspacing
• Wheels need to have a center hole of at least 3.25 (82.55mm) or require a 1 wheel spacer
