Polaris RZR XP Turbo S 4in. Portal Gear Lift

Dominance Is Spelled “GDP
The best; toughest; and most reliable portal lifts only come from GDP. So upgrade to SuperATVs GDP 4 Portal Gear Lift for your Polaris RZR XP Turbo S to get a lift and a gear reduction in one box. Get the clearance to run bigger tires and the torque you need to turn them. The lift and gear reduction are in the hub; which means they maintain suspension geometry and reduce drivetrain stress. Our 4 portal lift is available with 15% or 30% gear reductions and cast or billet housings. And you can opt for dual idler gears to get unbeatable strength. No matter how you ride or how much you tear your stuff up; GDP is for you.

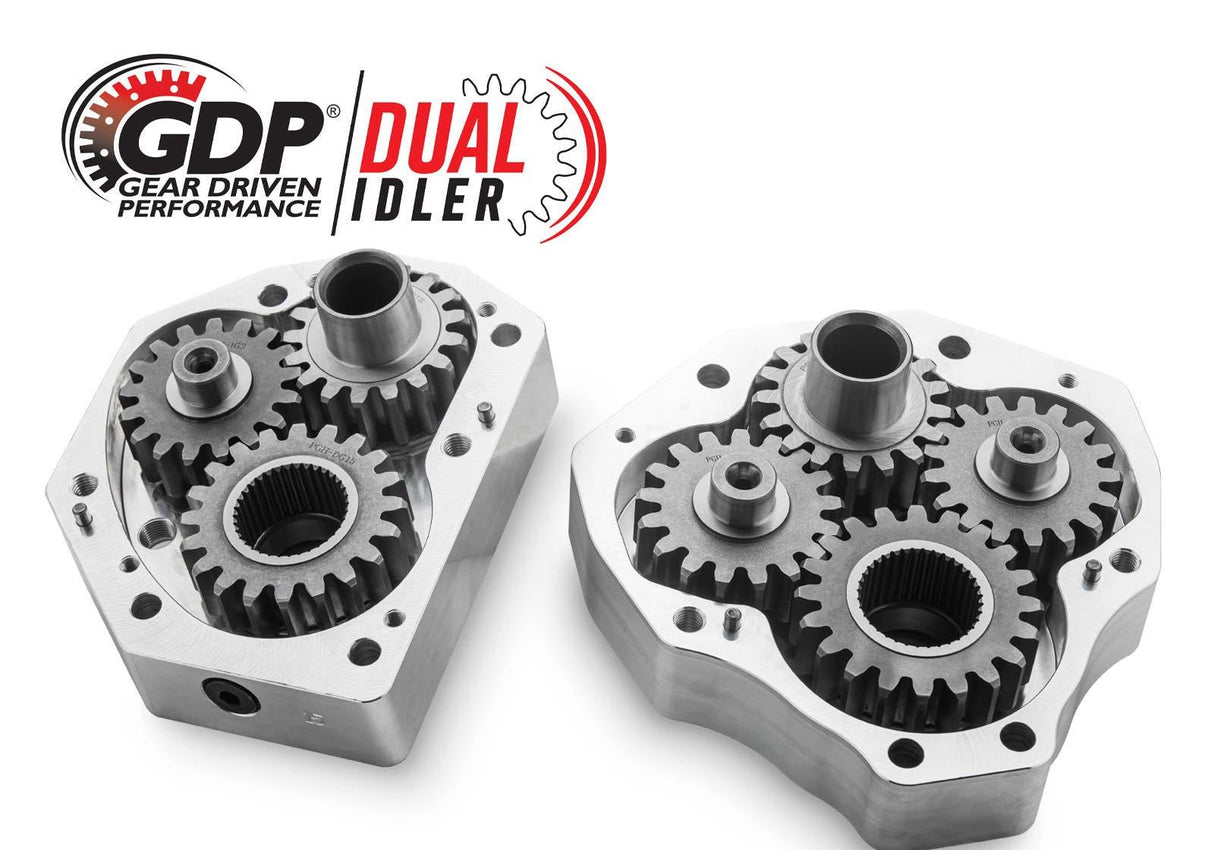

What is a Dual Idler®?
Perfection takes time. After years of research and development; weve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box; the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears dont do a thing if theyre not mated perfectly; though. Precision CNC grinding ensures ours do. Our gears are made from the industrys toughest 9310 steel alloy. Didnt think dual idlers mattered? With GDPs quality and experience; they finally do.

Get the Right Gear Reduction to Dominate Any Terrain
No matter what type of riding you do; weve got a gear reduction that will make you better at it. If your favorite ride is through deep mud or all over killer rock gardens; get a 30% gear reduction. It gives you more torque so you can turn bigger tires through all sorts of crazy terrain. Want to hit top speed with tires that arent as huge? Stick with a 15% gear reduction. It still gives you enough torque to make you grin; but saves more of your top-end speed.

GDPs Gear Reduction Protects Your Drivetrain
GDP puts the gear reduction right in the hub. Because thats right at the end of your drivetrain; all your components benefit from it the same way you do. With GDP Portals; your axles; differential; prop shafts; and transmission all work less and wear less than with stock.

Strength Worthy of Your RZR Turbo S
Try as you might; you wont find portals stronger than GDP. Our cast and billet aluminum housings are smarter; stronger; and more reliable. We pair them with 5/16 backing plates that use a special steel alloy thats incredibly strong. Together; they make an unbeatable pair thats tough enough for you to send it.

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood—gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets; Seals; and Bearings
Our portals use:

• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

Complete the Package with a Frame Stiffener
RZR Turbo S portals with monster tires are fun; but they can place additional stress on your machines frame. To make your UTV stronger than ever; add a SuperATV Frame Stiffener when you check out!

Top-Rated Customer Service
Still need a little help getting exactly what you need? Weve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.

4 Portal Gear Lift Includes:
(4) Assembled portal hub boxes complete with 9310 gears; seals; output shaft; gaskets; and thrust bearings
(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
(4) Specialized steel alloy backing plates
(4) Steel caliper mounting plates
(4) Caliper mounting plate shims (dual idler configuration only)
(4) Caliper adapters
(4) Brake pad retainer clips (specific models only)
(2) Steel steering arms
(2) Aluminum hub adapters
Extended brake lines
All required hardware; including recessed castle nut socket
Frame stiffener (optional)

Polaris RZR XP Turbo S Portal Gear Reduction Recommendations
Tire Size	Required Suspension Setup with 4 Portals
36	Stock
39	1.5 Forward Front A-Arms
39	3 Lift Kit
41	1.5 Forward Front A-Arms and 3 Lift Kit
If you need help figuring out which gear reduction is right for you; check out our portal gear reduction calculator.
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub; larger tire sizes can be used.

Patent # 11;299;042

Patent # 11;318;787

• Polaris RZR XP Turbo S : 2018-2021
• Polaris RZR XP Turbo S Velocity : 2019-2021
• Polaris RZR XP 4 Turbo S : 2019-2021

Wheel Requirements:

• 14 or larger wheel required
• Wheels cannot exceed 5 backspacing
• Not compatible with dual beadlock wheels
• Wheels need to have a center hole of at least 3.25 (82.55mm) or require a 1 wheel spacer
