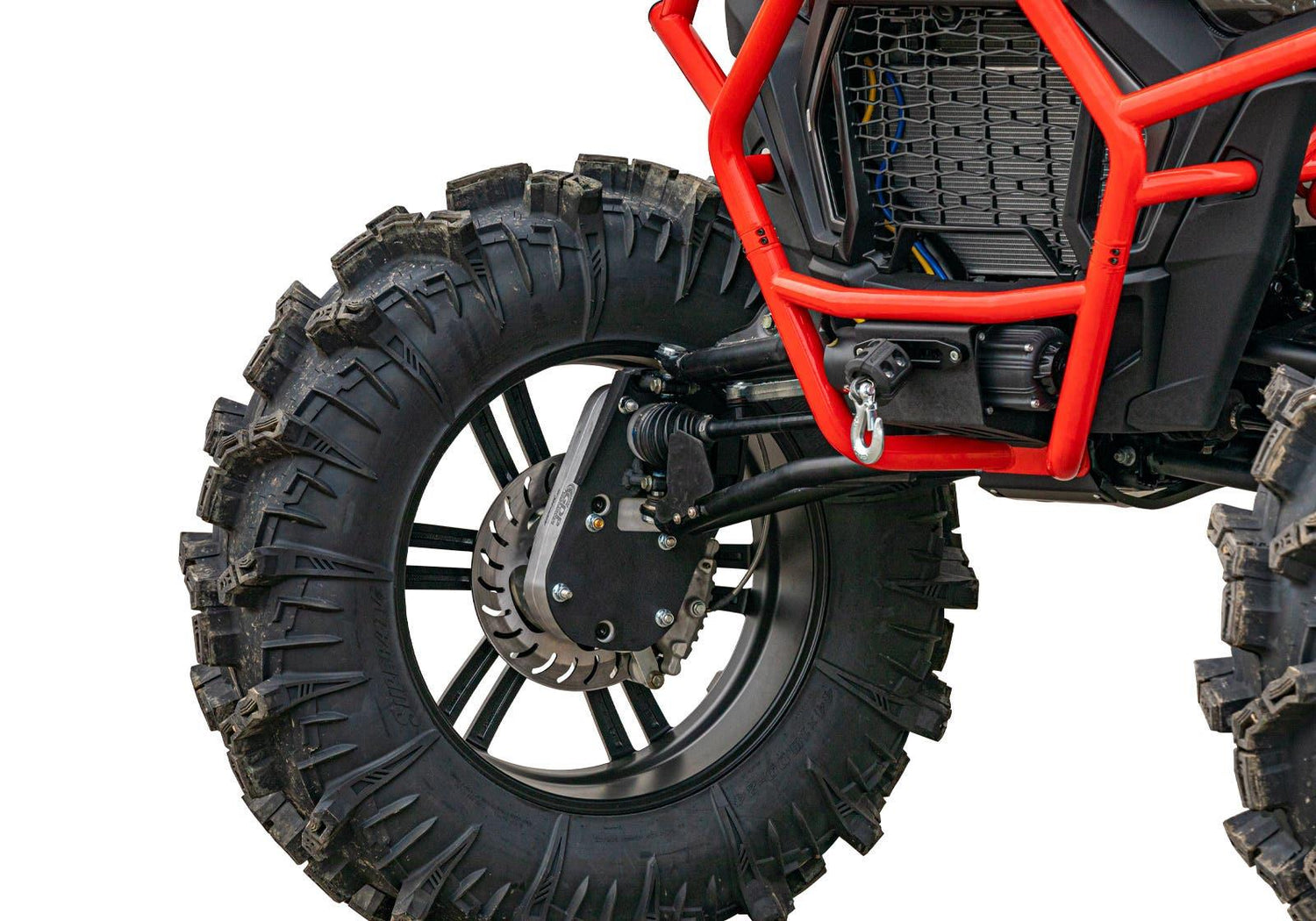

Polaris RZR XP Turbo S 8in. Portal Gear Lift

Gear Down and Go Big
What can you do with a monster 8 GDP Portal Gear Lift with either a 45% or 60% gear reduction? Anything you want. With room for up to 40 tires and the boosted torque to turn them; your Polaris RZR XP Turbo S will push through deeper mud and climb over bigger rocks. With GDP; the way forward is to drive straight through.

GDP—the Most Trusted Name in Portals
Why should you choose GDP over others? Because the verdict has been delivered; and thousands of riders choose GDP to carry their ride every weekend. In fact; more riders roll on GDP Portals than any other portal system. Youre not taking a chance on unproven technology; youre choosing the most trusted name in portals.

Perfect for Mud
Bounty holes arent built for stock machines; and they favor those that go big. With 8 inches of ground clearance on top of whatever monster mud grips you get; youll be anything but stock. With GDP; you wont be neck deep; and that extra power to the ground® will keep your tires turning and your machine moving forward.

A Gear Reduction That Protects Your Drivetrain
The gear reduction on GDP portals comes at the very end of the drivetrain. Since its right in the hub; that means your axles; differential; prop shaft; and transmission all benefit from it. You get less stress on your components and machine that lasts longer than stock.

Learn more about how tire size and gear reduction can unleash your machines potential.

Better Gear Material
We take Gear Driven Performance seriously; thats why we dont skimp on gear material. Theyre made from precision-ground 9310 alloy steel that makes them quiet and smooth. These top-of-the-line gears are built for the way you ride.

Stronger Housings by Design
You can choose from either cast or our USA-made billet aluminum. No matter what you choose; you know youre getting the strongest designed portal housing on the planet. With tens of thousands out getting beat on every week; you know these housings are trail proven.

• Our housings are reinforced in all the right places
• Theyre built with better oil flow and gearing forces in mind
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

The Strongest Portal Backing Plates You Can Get
We use an advanced steel alloy for our backing plates thats unmatched in strength and durability. Its stronger than chromoly and at 5/16 thick; its strong enough to hold your suspension together for the lifetime of your side-by-side.

Advanced Gaskets and Seals
Whether you go with cast or billet; both housings use:

• Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks

Bearings That Rock
We know that even the smallest details are important. Thats why our output bearings are the best you can get. Theyre double-angular contact bearings so they dont break or wear prematurely when youre hitting bumps and riding hard. Its one more way we make sure GDP is the best.

Universal Hubs and Slotted Rotors
Our precision-ground; stainless steel slotted rotors stay cool to give you the braking power you need when you need it. They come with 4/156; 4/137; 4/115; and 4/110 bolt patterns and lugs so you can use almost any side-by-side wheel on these portals. We made them that way to make your life easier. We invented the tapered output shaft that our hubs attach to. It provides a more secure lock that wont wobble or wear over time.

Reinforce Your UTV with a Frame Stiffener
We highly recommend running a SuperATV Frame Stiffener with your 8 Portal Gear Lift. Your stock RZR Turbo S frame is tough; but its not tough enough to handle going this big. Get a frame stiffener and get piece of mind that your machine will hold together when the pedals down.

Top-Rated Customer Service
Still need a little help getting exactly what you need? Weve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.

8 Portal Gear Lift Includes:
(4) Assembled portal hub boxes complete with 9310 gears; seals; output shaft; gaskets; and thrust bearings.
(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
(4) Specialized steel alloy backing plates
(2) Rear bearing adapters
(4) Steel caliper mounting plates
(4) Caliper adapter plates
(2) Steel steering arms
Extended brake lines
All required hardware; including recessed castle nut socket

Polaris RZR XP Turbo S Portal Gear Suspension Recommendations
Tire Size	Required Suspension Setup with 8 Portals
Up to 43	Stock
44	1.5 Forward Front A-Arms
44	3 Lift Kit
45	1.5 Forward Front A-Arms and 3 Lift Kit
Gear reductions listed are general guidelines to maximize torque and maintain factory top speed. A larger than recommended gear reduction will result in more torque and lower top speed. Give us a call for more information.

Patent # 11;299;042

• Polaris RZR XP Turbo S : 2018-2021
• Polaris RZR XP Turbo S Velocity : 2019-2021
• Polaris RZR XP Turbo S 4 : 2019-2021

Wheel Requirements:

• 22 or larger wheel required
• Wheels cannot exceed 5 backspacing
• Wheels need to have a center hole of at least 3.25 (82.55mm) or require a 1 wheel spacer
